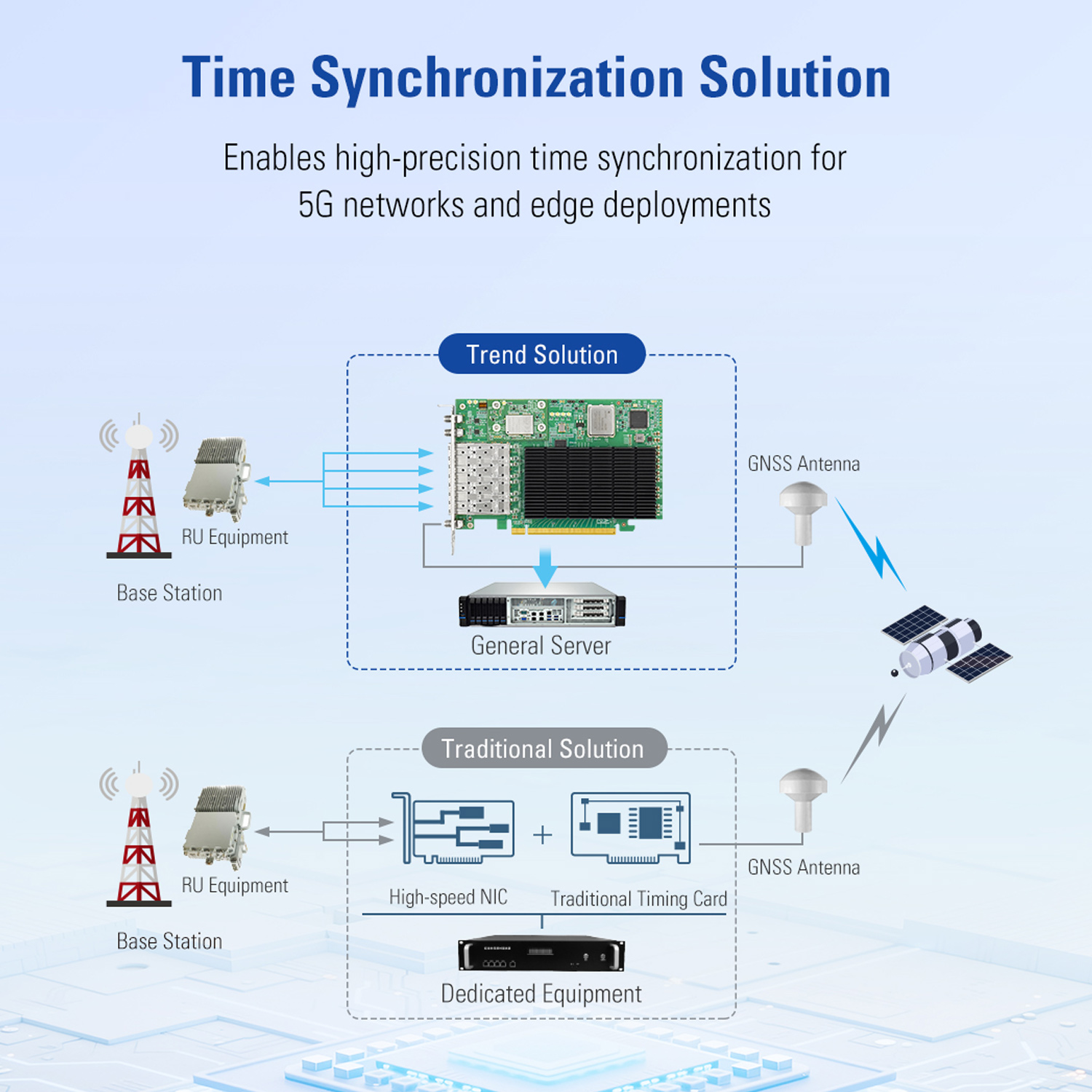

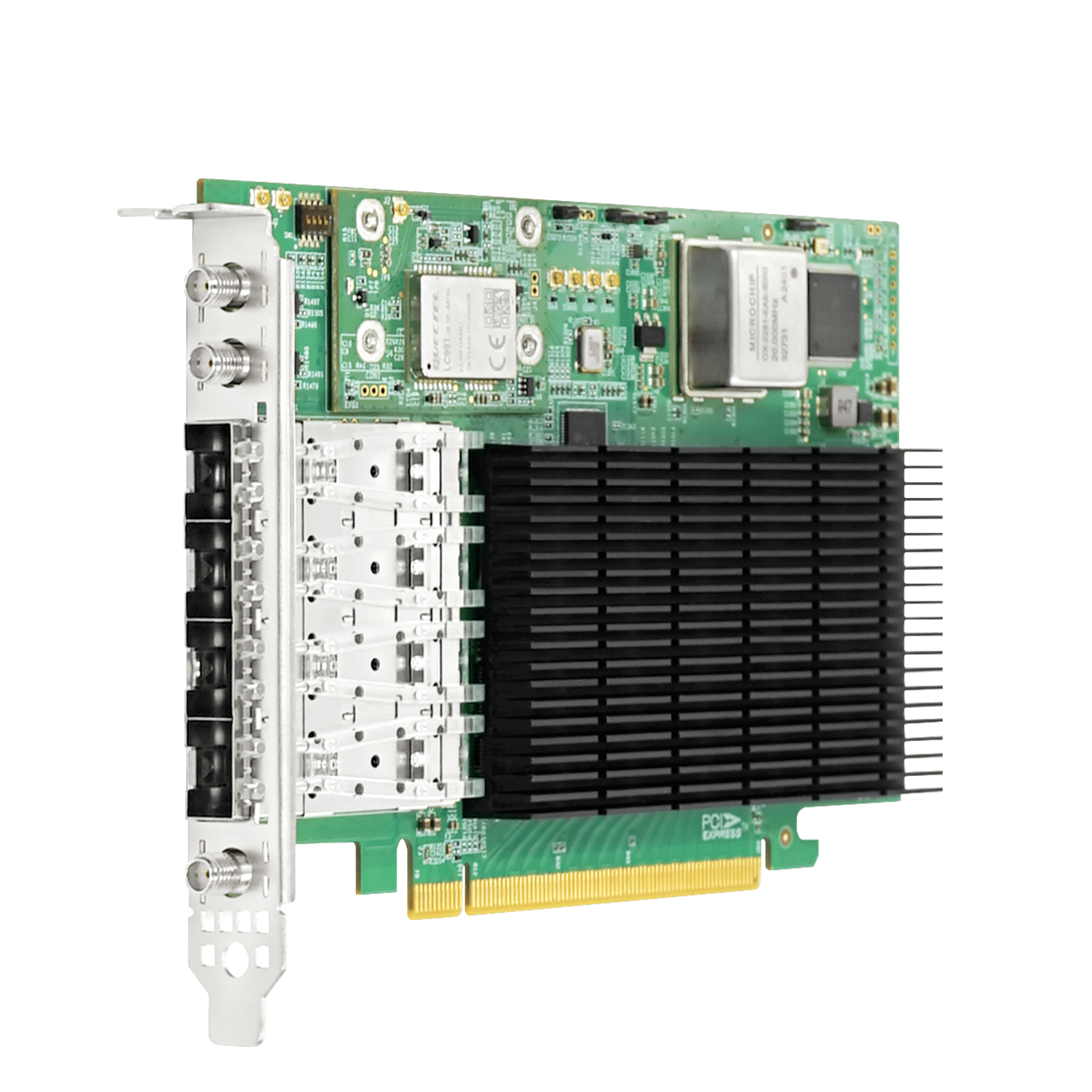

Increasing growth in 5G RAN and edge deployments is driving demand for high-precision timing synchronization across the network. Meet these challengingrequirements head-on with a standards-based PCle adapter that provides greater flexiblitly at a lower price point than single-purpose timing appliances.Most 5GRAN deployments use 1588 PTP, SyncE, or both to ensure required timing synchronization.The LRES6080PF-FP28 Timesync card is based on the intel E810 NlC controller and Microchip PlL and supports 4 port of2510/1GbE.lt uses 1PPs and 10MHZto synchronize the host system with an external clock source,and supports both 1588v2/PTP and SyncE synchronization methods. it achieves high clock acuracin master and slave modes, whie additional hardware enhancements ensure relablity and accuracy, and provide greater fexibity and simpliciy for timingsynchronization deployments.

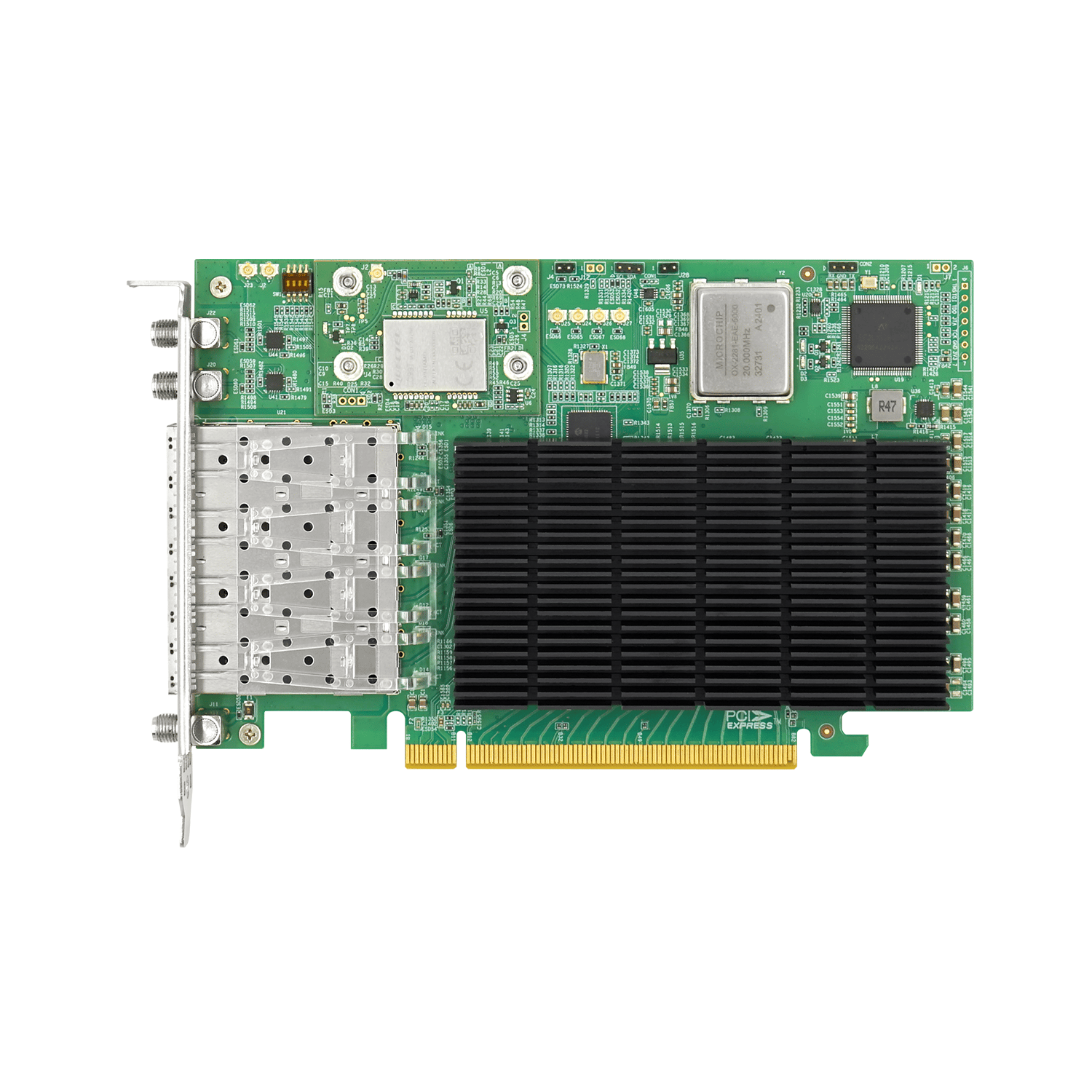

TimeSync:

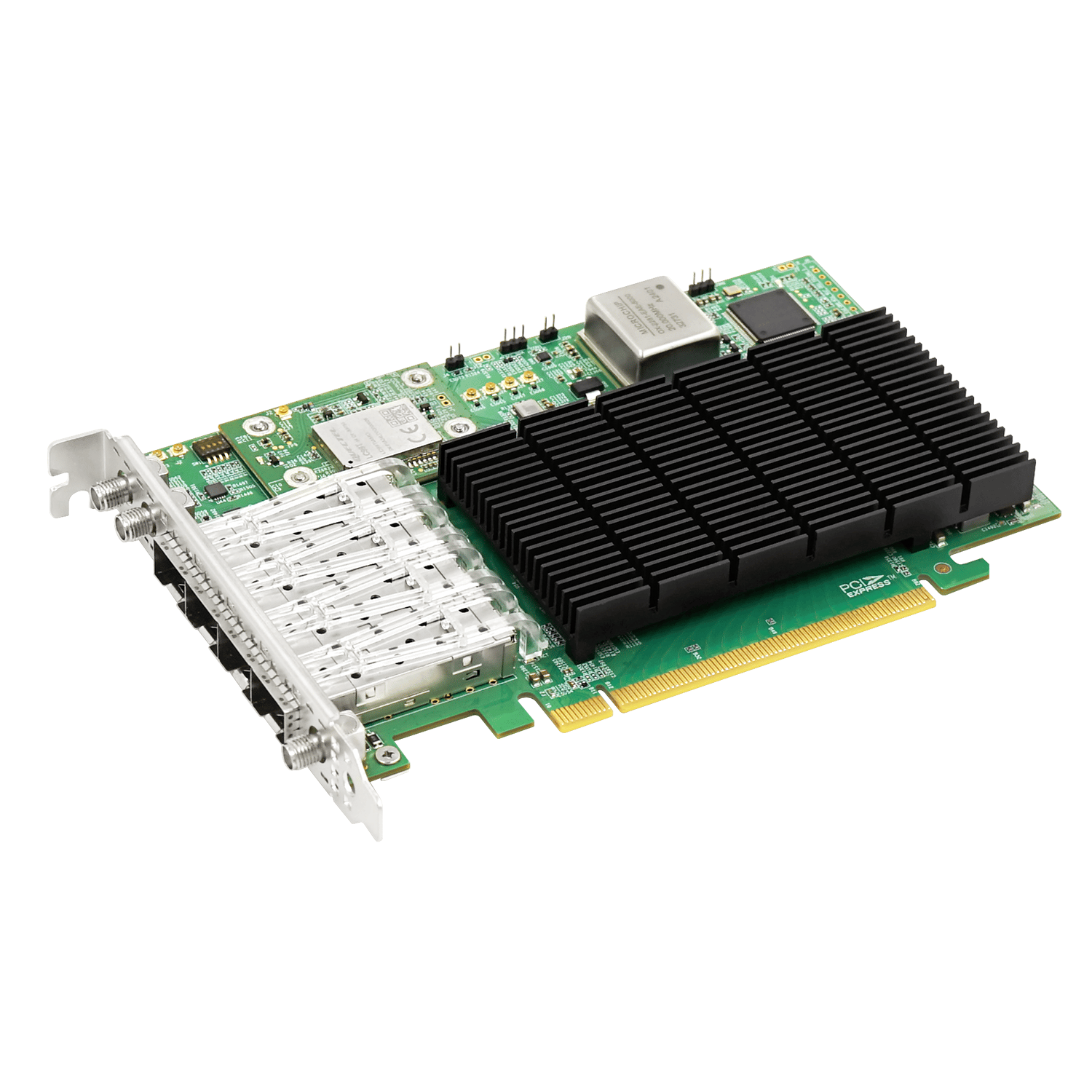

Quad Port SFP28 for 25G/10GbE

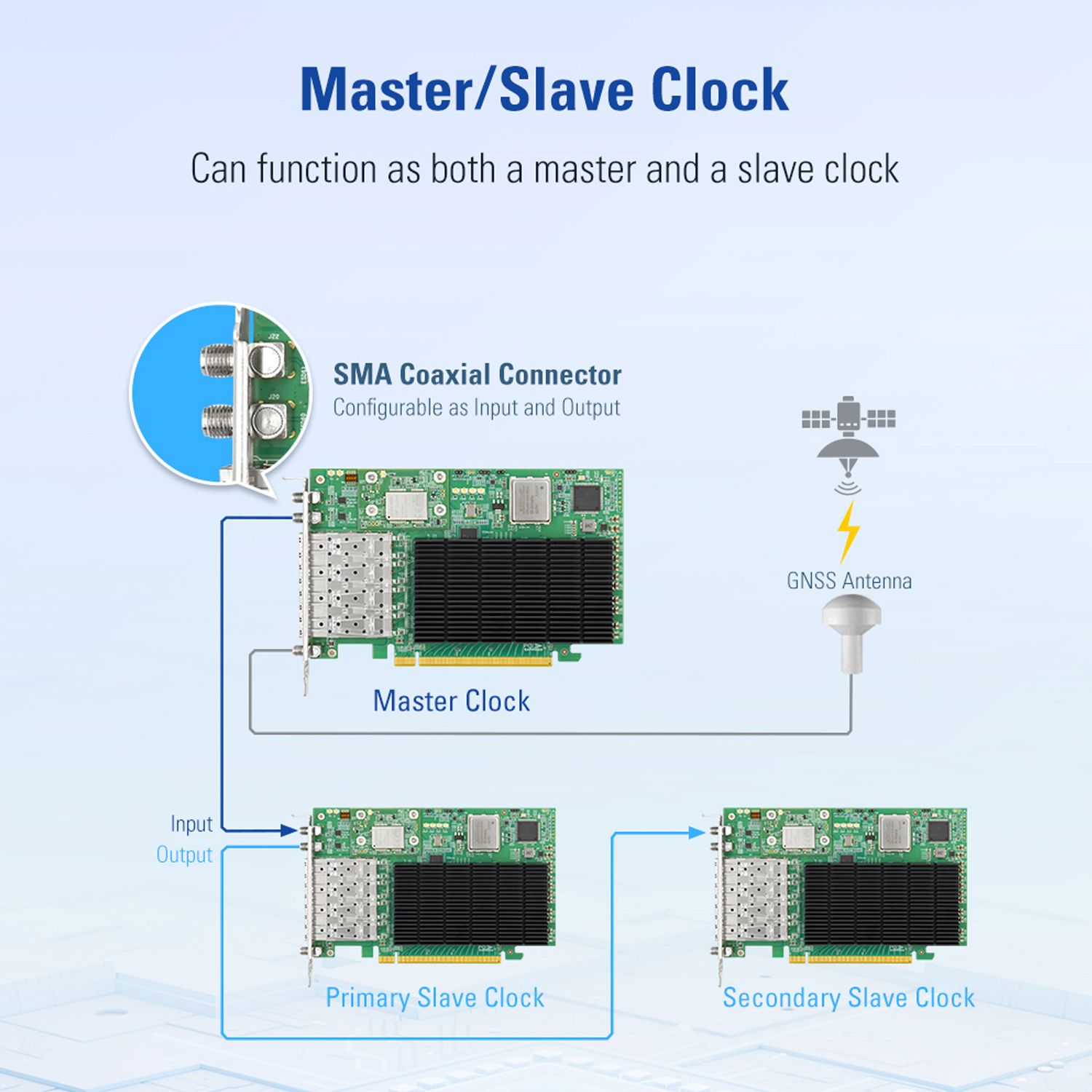

Supports PTP Transparent Clock (TC) Boundary Clock (BC) OC (Master / slave)
PTP over IPv4 (IEEE-1588v2)/ SyncE

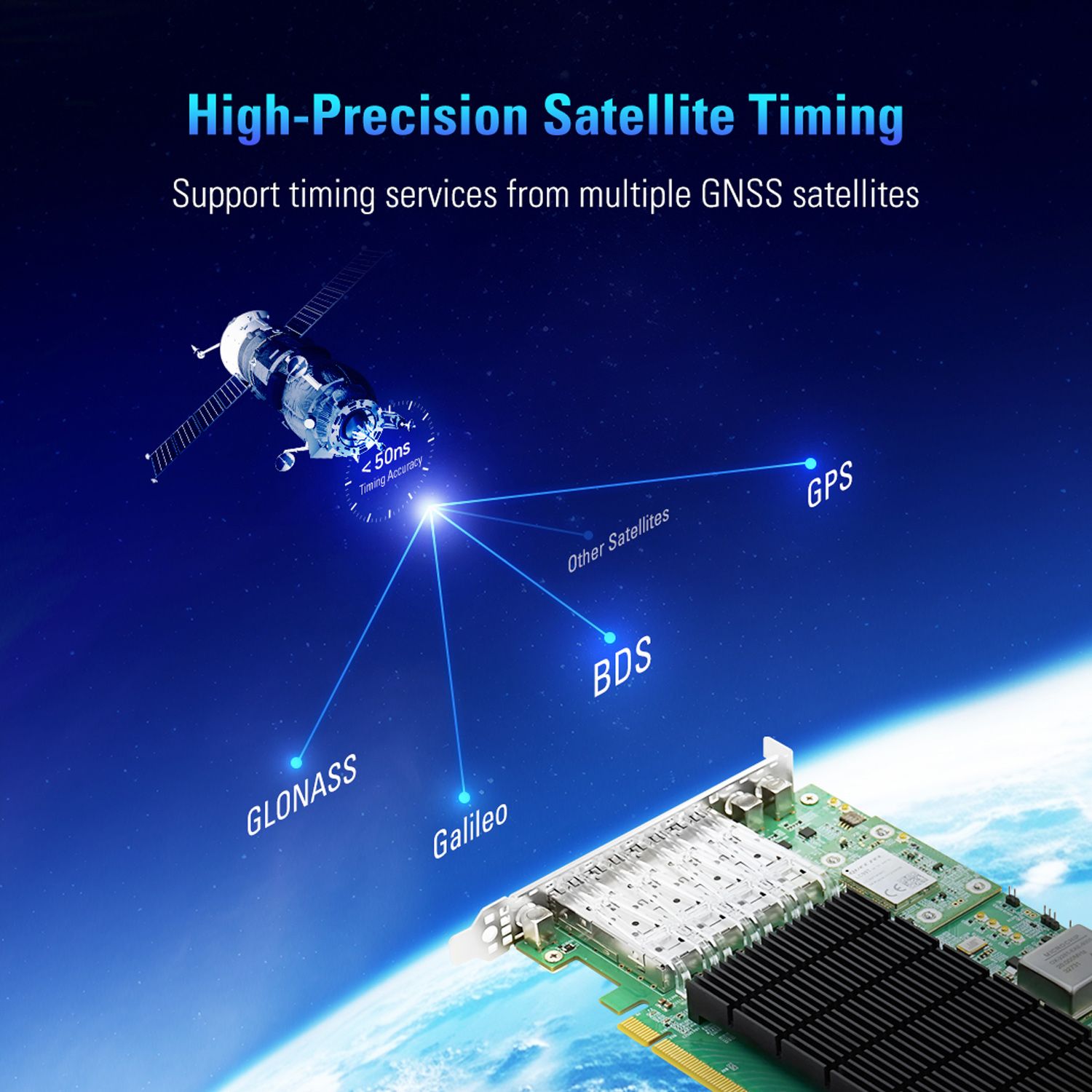

GNss enables integrated support for freguency, phase, and time synchronization with global navigation satelite systemsDual SMA (10 MHz /1PPS), with configurable input and output
Full HW and sw Timesync solution based on industry leading DPLL, high-precision clock solution,servo stack and PTP1588
high-precision OCX0 +/-5ppb to keep 4h accuracy< 1.5us without External source assistance
LAN and Virtualization Features:
RDMA: Supports iWARP and RoCEv2, and can be selectively configured for each port.SR-l0V (Single Root 1/0 Virtualization): 8PFs, 256VFs, 768VSls, 256 Queues per PF, 2K Queue pairs totalDPDK:supports advanced packet forwarding and highly-efficient packet processing
Packet Processing | RDMA |
• Enhanced Data Plane Development Kit (DPDK) | • iWARP and RoCEv2 |
• Parser | • 256KQueue Pairs (QPs) |
- Parses up to 504B from packet header | • Send Queue Push Mode |
- Parse Graph based | Note: RDMA is not supported when the E810 is configured for >4-port operation. |
- Session-based parsing | |
- Programmable parse engine | QoS |
• Binary Classifier (VEB Switch) | • WFQ Transmit scheduler with nine programmable layers |
- 768 switch ports (VSIs) | • Pipeline sharing and starvation avoidance |
- Programmable forwarding rules | • QoS via 802.1p PCP or Differentiated Services Code Point (DSCP) value |
- Storm Control | • Packet shaping |
• ACLs | |
- 8K programmable TCAM entries | Manageability |
- Tiling capability to n*40b width | • SMBus operating at up to 1Mb/s |
• Classification Filters | • DMTF-compliant NC-SI 1.1 Interface at 100Mb/s |
- Hash-based statistical distribution | • MCTP over PCIe and SMBus |
- Intel® Ethernet Flow Director flow-based classification | • Enterprise-level management schemes via local BMC |
- Flow-based identification of iWARP and RoCE flows | • SNMP and RMON statistic counters |
- Programmable rules | • Watchdog timer |
• Modifier | • PLDM |
- Insert (Tx), remove (Rx), and modify of packet VLANs | - PLDM over MCTP; |
- L3 and L4 checksums and CRC | - PLDM Monitoring; |
- PLDM firmware update; | |
Virtualization | - PLDM for RDE |
• Host virtualization via VMDQ and SR-IOV | • Firmware Management Protocol support |
• Up to 256 SR-IOV Virtual Functions | |
• Stateless offloads for tunneled packets (network virtualization support) | |
• Malicious VF protection | |
• Virtual machine load balancing (VMLB) | |
• Advanced packet filtering | |
• VLAN support with VLAN tag insertion,stripping and packet filtering for up to 4096 VLAN tags | |
• VxLAN, GENEVE, NVGRE, MPLS, VxLAN- GPE with Network Service Headers (NSH) |

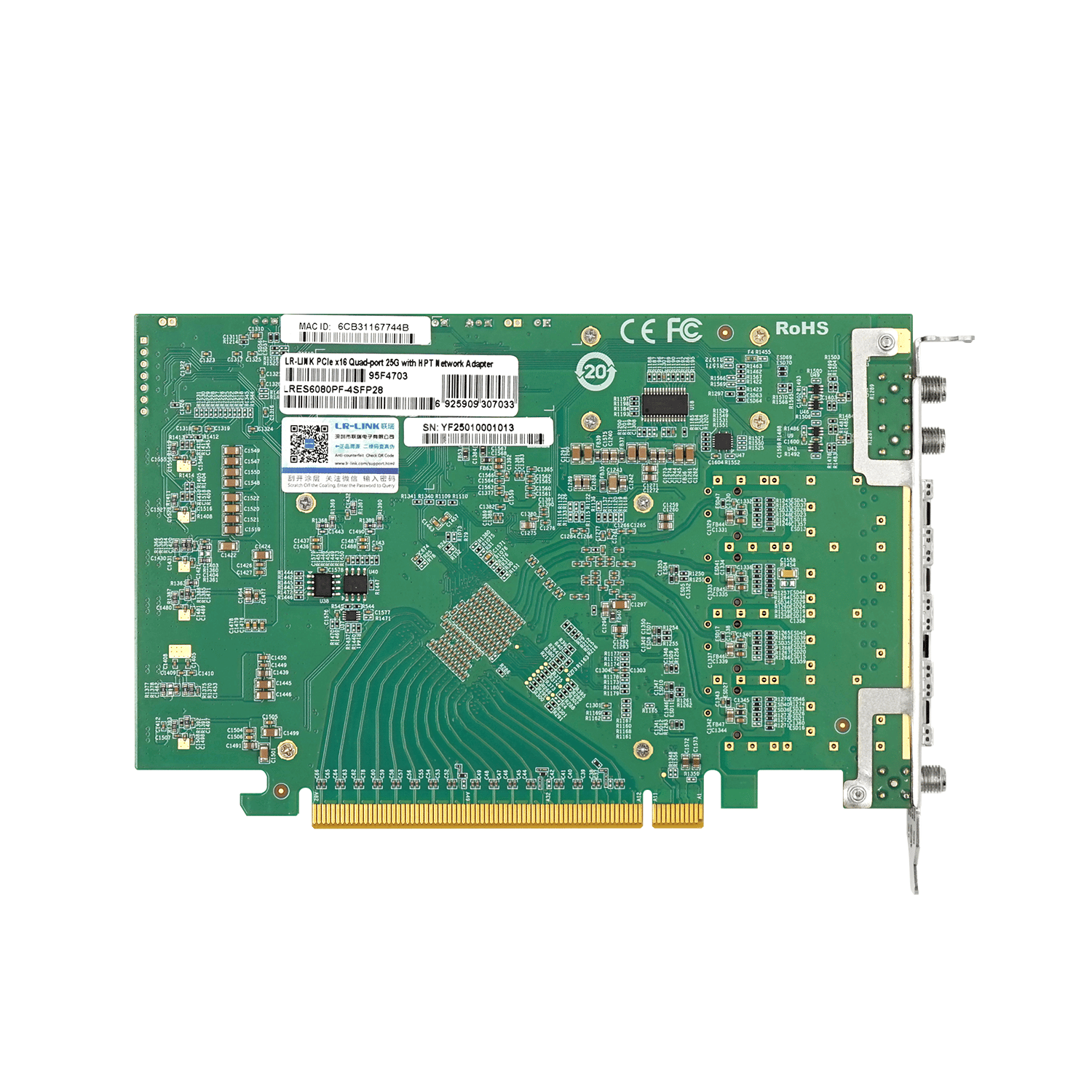

Adapter Features | |
Data Rate Supported | 25/10/1GbE per port |
Bus Type/Bus Width | PCIe 4.0 x16 |
Connectivity | Four SFP28 ports |
SubMiniature version A (SMA) connectors | Two coaxial connectors, each capable of being configured as a 1PPS (one pulse per second) input or output |
SubMiniature version B (SMB) connector | Coaxial connector for connecting to an external active GNSS antenna |
Controller | Intel® Ethernet Controller E810-CAM1 |
Bracket | Full height |
Dimension | 167.17 * 110.7 (Full-height, half-length) |
Supported Physical Layer Interface | ||
25Gbps | 10Gbps | |
Optics and AOCs | 25GBASE-SR 25GBASE-LR | 10GBASE-SR 10GBASE-LR |
Power Consumption | ||
DACs | Typical Power | Max Power |
25GbE Max | * | * |
Idle (no traffic) | * | * |
Optics (Class 2) | ||
25GbE Max | * | 23.22 W |
Idle (no traffic) | * | 13.428 W |
Technical Specifications | |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 °C |
Storage Temperature | -40 °C to 70 °C |
Operating Temperature | 0 °C to 55 °C |
Regulation | Card shall meet CE, FCC Class B, ROHS requirements. |
LED Indicators | LINK: 25GbE = green; less than 25GbE = amber ACT: 25GbE = green + green blinking; less than 25GbE = amber + green blinking |
Supported Operating Systems | ||
• Windows • Windows Server • RHEL/CentOS • VMware ESXi • Ubuntu • Deepin • FreeBSD
| • Fusion OS • Debian • Galaxy Kirin • NeoKirin • OpenKirin • OpenEuler | Note： Please refer to the product test report for the specific supported operating system versions. |
